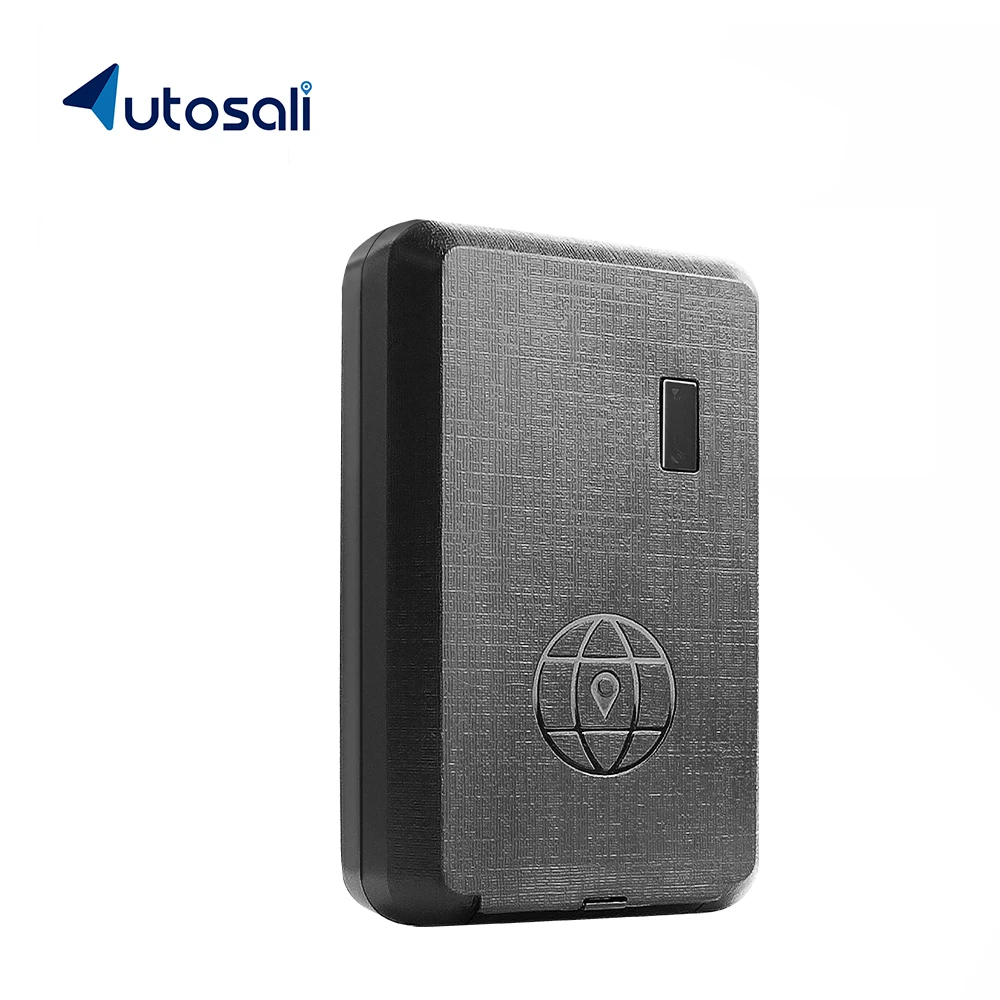

Long Range Gps Tracker for Car

Product Parameters

CLASS

FUNCTION

DESCRIPTION

Electrical Features

Mode of Power supply

Supply of storage battery

Operating voltage

DC 3.9V

Working current

12V/Average 35mA

Sleep current

12V/Less than 4mA

Built-in battery capacity

5000 mAh (Polymer battery)

Environmental Features

Range of operating temperature

-20℃ - 75℃

Range of storage temperature

-40℃ - 85℃

Range of operating humidity

20%-85% RH

Communication Features

Frequency Bands

LTE-FDD:

B1/B2/B3/B4/B5/B7/B8/B20/B28/B66/B34/B38/B39/B40/B41

GSM/2G

850/900/1800/1900MHz

Antenna specifications

FPC

Positioning mode

GPS&BDS

Antenna specification

18mm * 18mm * 4mm

Outside specification

Size

87mm(L)*54mm(W)*26mm(H)

Weight

149g

Material

ABS

Different Work Mode

Theoretical standby time

Standard work mode: 2~3days

Smart sleep work mode: According to the time of use

per day

Deep sleep work mode : 3~4 months

Timed power-on work mode (Interval 10 hours):11 months

Timed power-on work mode(Interval 2 days):3 years

Standard work mode

In this work mode, the device will not go to sleep, GPS and GPRS are always active.

Smart sleep work mode

In this work mode, the device is still for 3 minutes, GPS and GPRS will be turned off, and the device will be offline. It will wake up when exercise, reconnect to the platform, and turn on GPS.

Deep sleep work mode

After the deep sleep mode is turned on, the device is in a complete sleep state and is not affected by movement and stillness. It can only be woken

up by sending the command WAKE# or calling the center number to enter. Each wake-up time only lasts 10 minutes. After 10 minutes, the device will Enter deep sleep again.

Timed power-on work mode

The working mode is turned on by SMS command, once the working mode is turned on, the above three working modes are invalid, according to the set boot time interval(1~24 hours or 2~7 days), the device gets up to work, and the working time can also be set by SMS command.
